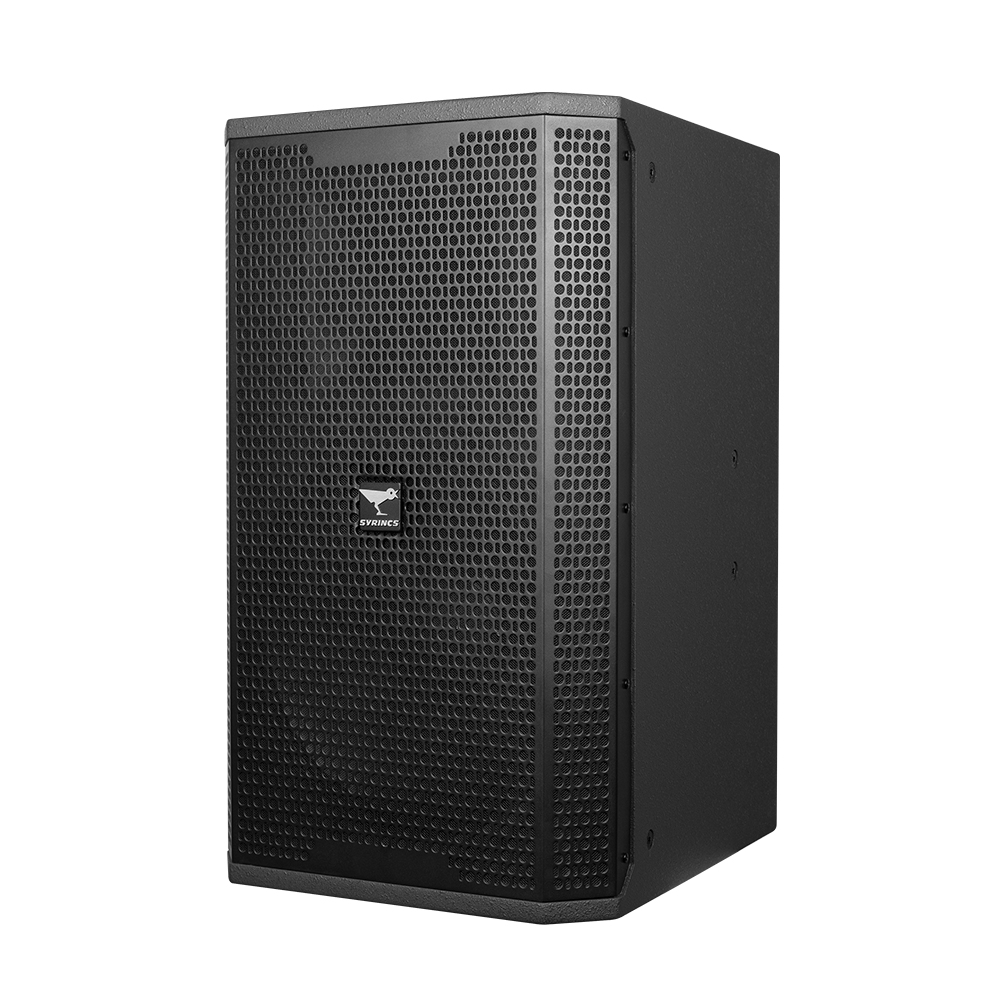

DS135
14-inch two frequency front-ported speaker

DS135-14-inch two frequency front-ported speaker
DS135-14-inch two frequency front-ported speaker
DS135-14-inch two frequency front-ported speaker
DS135-14-inch two frequency front-ported speaker
DS135-14-inch two frequency front-ported speaker
DS135-14-inch two frequency front-ported speaker
High-power, low-distortion full-range speaker. It is equipped with a carefully designed 14-inch high-power, low-distortion woofer and a 44mm (1.7-inch) titanium and polyethylene diaphragm compression tweeter
Expressive power: The mids and highs are transparent and bright, and the low frequency is strong and powerful;
It makes karaoke easier and more natural, and makes the party atmosphere full of surrounds; it is an ideal choice for karaoke, small parties and other commercial entertainment venues.

Product Description

Unbound soundscapes, endless brilliance From wild celebrations to intimate gatherings, let every note and every lyric etch itself into memory as your most vivid rhythm. The DS Series Audio System is an acoustic powerhouse crafted for energy and celebration Treble shines like a cascade of starlight, cutting through every corner. Midrange delivers vocals with lifelike clarity, as if the singer were beside you. Bass pulses with earth-shaking energy, turning rhythm into the heartbeat of the room. From electrifying party spaces to immersive KTV sessions, the DS Series breathes soul into every scene.

DS135
14-inch two frequency front-ported speaker

Downloads

Send your inquiry

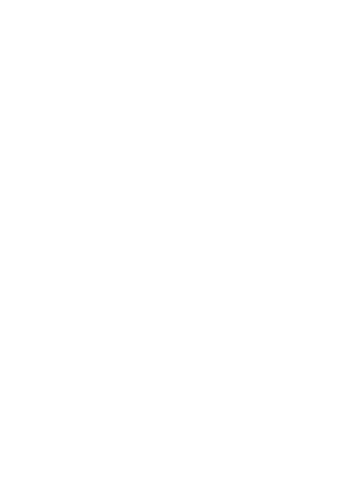

Dimensional drawing

Dimensional drawing

Technical specifications

Frequency Response(-3db)50Hz-18kHz
Rated Power(RMS)750W
Max SPL @ 1m127dB/133dB (PEAK)
Dispersion (H x V)90° x 95°
Sensitivity 1W @ 1m99 dB
Nominal Impedance (Ohm)4 Ω

Physical specifications

Box14-inch two frequency front-ported speaker
Woofer1 x 14 inch low-frequency unit
Compression driver1 x 1.75 inch compression driver
Frequency division modeBuilt in two-way frequency divider
Cabinet/Case Material12mm laminated board
Box surface treatmentCoal gray 0.9 small point paint
GrilleElectrostatic powder spray black, 1.2mm mild steel
Connector2 x NL4
Optional AccessoriesLifting kit
Dimensions(W x D x H)390 × 493 × 645mm
Package Dimensions(W x D x H):415 × 510 × 680mm
Net weight29.50kg
Gross weight32kg
