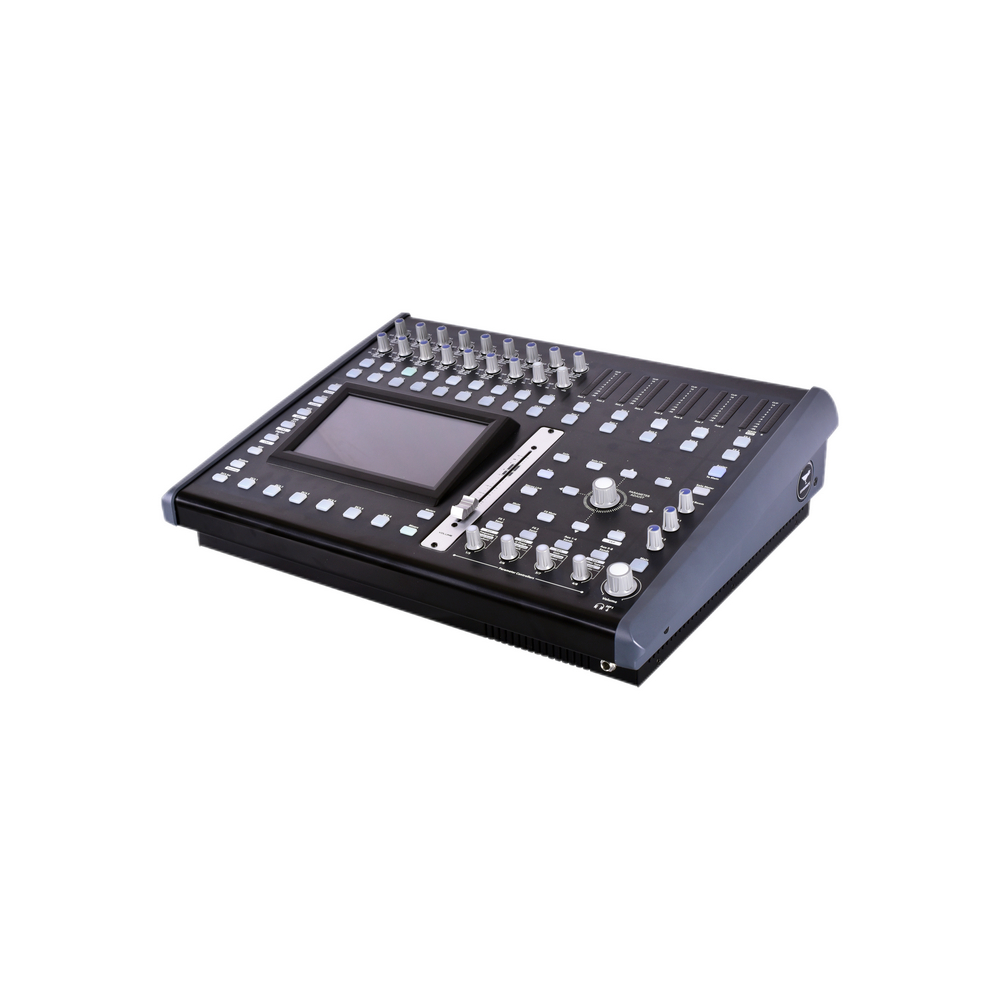

The SYRINCS digital mixing console comes with 20 linear level inputs, 16 microphone preamplifiers, and a playback engine; 31 segment GEQ processor; DSP effect; Although the auxiliary bus has such powerful functions, its operation is very simple.
| Microphone input | Electronic balanced |
| Frequency response direct output | 20Hz-20KHz 0dBu ± 1.5dB |
| Main output distortion (THDN) | 0.01% at 0dBu 1 KHz |
| Signal to noise ratio | 107dB |
| Maximum input level | +22dBu |
| Phantom power supply (+/-3V) | +48VDC |
| Linear input | Unbalanced |
| Frequency response direct output | 20Hz-20KHz 0dBu ± 1.5dB |
| Main output distortion (THDN) | 0.01% at 0dBu 1KHz |
| Gain | -15dBu~+35dBu |
| Maximum input level (0dBu gain) | +20dBu |
| 17~18/9~20 stereo input | Balanced (2 stereo pairs) |
| Main output frequency response | 20Hz-20KHz at 0dBu ± 1.5dB |
| Main output distortion (THDN) | 0.01% at 0dBu 1KHz |
| Gain | ∞ to+10dBu |
| Main output | |
| Maximum output level | |
| AUX1~4 output | +20dBu |
| Maximum output level | |
| SUB1-4 output | +20dBu |
| Maximum output level | +20dBu |
