Speaker

SYRINCS sound system has a variety of different series of products, which can meet the different needs of various styles of slow shaking bars, performance bars, KTV private rooms, and various entertainment venues; At the same time, it can also provide complete product solutions for various professional sound reinforcement fields such as large and small conference rooms, multifunctional halls, public broadcasting, background music, and mobile stages.

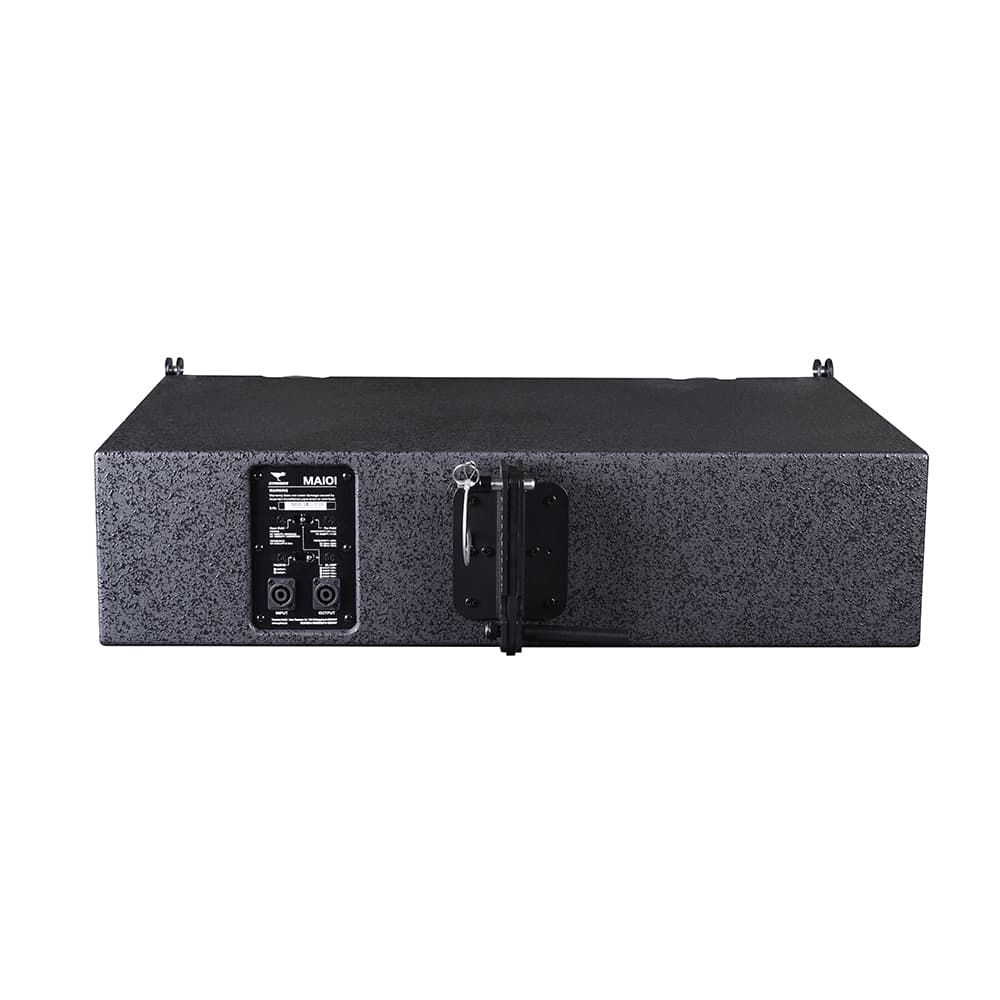

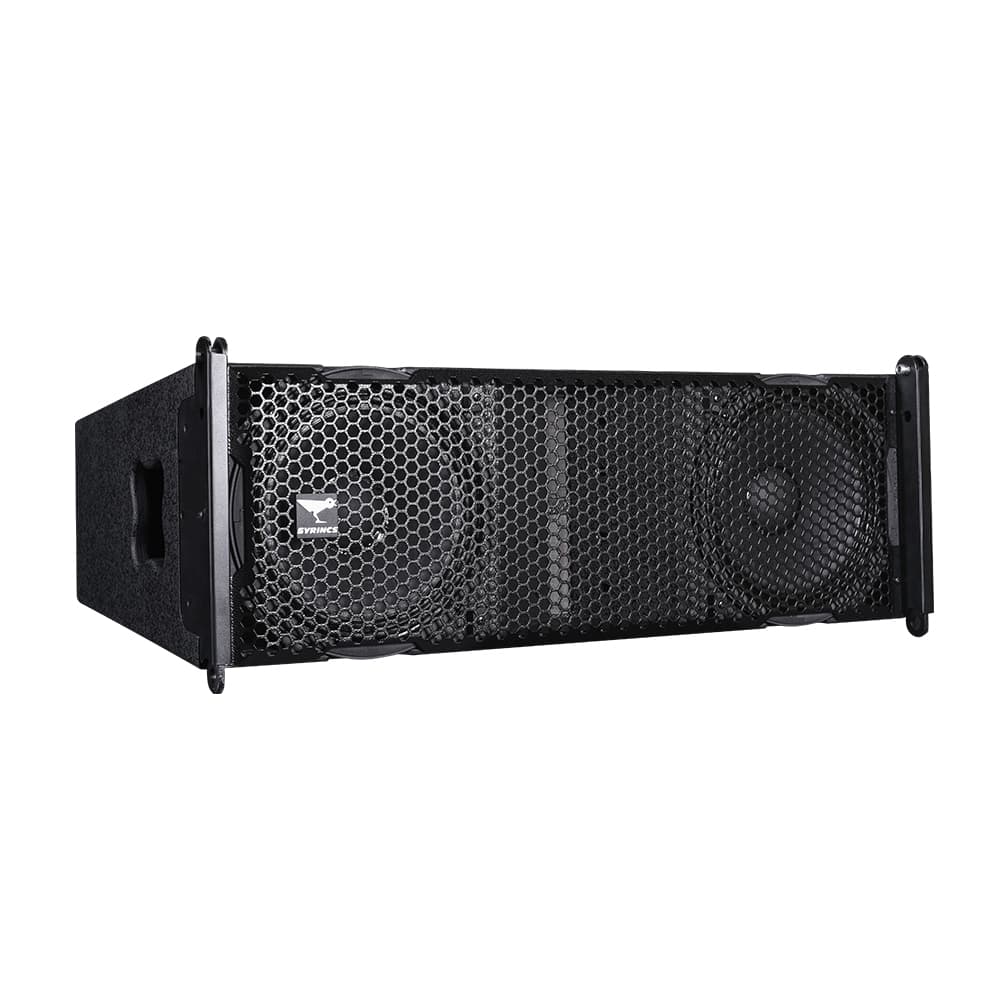

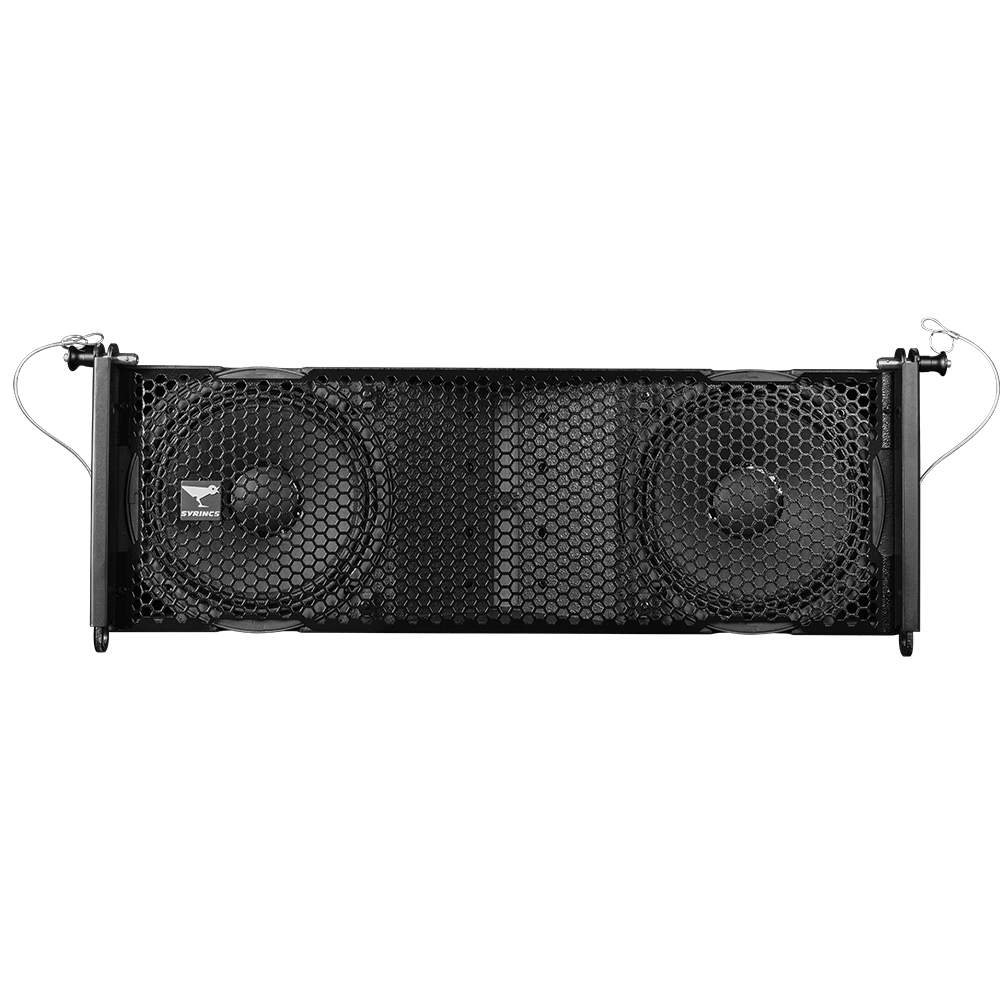

MA101
Dual 10-inch line array full-range speaker

MA101-Dual 10-inch line array full-range speaker
MA101-Dual 10-inch line array full-range speaker
MA101-Dual 10-inch line array full-range speaker
MA101-Dual 10-inch line array full-range speaker
MA101 is medium size line array speaker system, utilizing appropriate frame, which can hang 12pcs MA10l speaker at its maximum in vertical direction.
MA101 is two-way speaker, built-in dual 10 inch Neo woofer and 2 x44mm Kapton compression driver.
The Cylindrical wave segments of each cabinet will couple without gaps and sum up coherently. Splay angles between adjacent cabinets can be set in the range from 0° to 10° .

Product Description

MJ Series is mainly used in speakers designed for use in large and medium-sized performing arts, bars, theaters, multi-function halls, arenas, live performances and other places. High sound pressure, easy installation, convenient transportation and many other functions are integrated into one. The high-frequency unit driver has sufficient energy and excellent frequency response range, providing high-fidelity restoration and good sound field coverage for system playback.

MA101
Dual 10-inch line array full-range speaker

Downloads

Send your inquiry

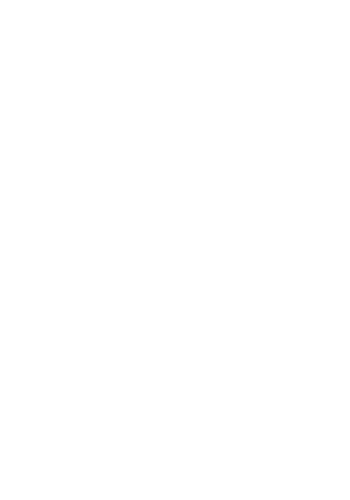

Dimensional drawing

Dimensional drawing

Technical specifications

Frequency Response(-3db)50Hz-18kHz
Rated Power(RMS)400W
Max SPL @ 1mNF:117dB/123dB(PEAK) FF:123dB/129dB(PEAK)
Dispersion (H x V)90° × 30°
Sensitivity 1W @ 1mMF:200Hz-7kHz
Nominal Impedance (Ohm)8 Ω

Physical specifications

BoxDual 10-inch line array full-range speaker
Woofer2 × 10 inch low frequency unit
Compression driver2 x 44mm Neo compression driver
Cabinet/Case MaterialImport laminate board
Box surface treatmentBlack polyimide spray
GrilleBlack powder spraying
Connector2 x NL4
Optional AccessoriesLifting kit
Dimensions(W x D x H)800 × 503 × 300mm
Package Dimensions(W x D x H):850 × 530 × 320mm
Net weight23kg
Gross weight25kg
